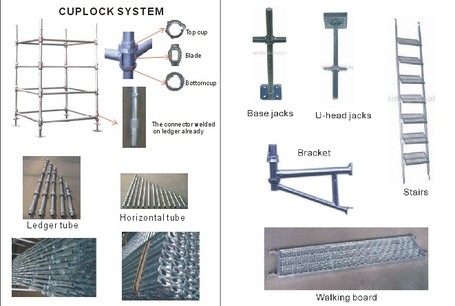

RIMMCA CUPLOCK SYSTEM with components of:
1. Standard member.
2. Horizontal member.
3. Jack base.
4. U-head.
5. Walking board.
6. Brackets.
7. Stairs.
8. Surface available: painted, powder coated, hot dip galvanization.
1) Standard member:
1. Made of steel pipe with O.D.48.00mm x3.5mm.
2. Sturdy standards available in five regular sizes with cup joints welded at 600m intervals.
3. The lower cups are formed from high quality steel while the mobile upper cups are casting to provide the necessary hardiness on-Site.
4. The connector welded on the end of standard for easier installation.
|
picture |
Item no. |
Height /mm |
Weight/kg |
|
RLG-300 |
3000mm |
15.60kg/pc | |
|
RLG-240 |
2400mm |
12.60kg/pc | |
|
RLG-180 |
1800mm |
9.60kg/pc | |
|
RLG-120 |
1200mm |
6.10kg/pc | |
|
RLG-60 |
600mm |
3.20kg/pc |
2) Horizontal member:
1. Made of steel pipe with O.D 48.00mm x 3.2mm.
2. Two casting blade locks welded on the ends of tube.
|
Item no. |
Length/mm |
Weight/kg |
|
RHG-180 |
1800mm |
6.80kg/pc |
|
RHG-150 |
1500mm |
5.80kg/pc |
|
RHG-120 |
1200mm |
4.70kg/pc |
|
RHG-90 |
900mm |
3.70kg/pc |
|
RHG-60 |
600mm |
2.60kg/pc |
3) Adjusting jacks:
1. Made of solid bar 32/35mm with height max 600mm.
|
Item Name |
pictures |
Code no |
Height/mm |
Weight/pc |
|
Base Jacks |
RC601A |
A1=400mm |
3.70kg/pc | |
|
RC601B |
A2=600mm |
5.00kg/pc | ||
|
RC601C |
A3=750mm |
6.00kg/pc | ||
|
U-head Jacks |
RC602A |
A1=400mm |
4.40kg/pc | |
|
RC602B |
A2=600mm |
5.70kg/pc | ||
|
RC602C |
A3=750mm |
6.60kg/pc |
4) Walking board, Bracket and Stairs:
|
Item Name |
pictures |
Code no |
Size /mm |
Weight/pc |
|
Walking board |
RC204 |
Width=400mm
A1=1800mm
A2=1500mm |
17.00kg/pc | |
|
Bracket |
RC712 |
A=900mm |
11.00kg/pc | |
|
Stairs |
RC515 |
Width=500mm
A=1800mm
B=1800mm |
20.00kg/pc |
